Renault Timing Tool

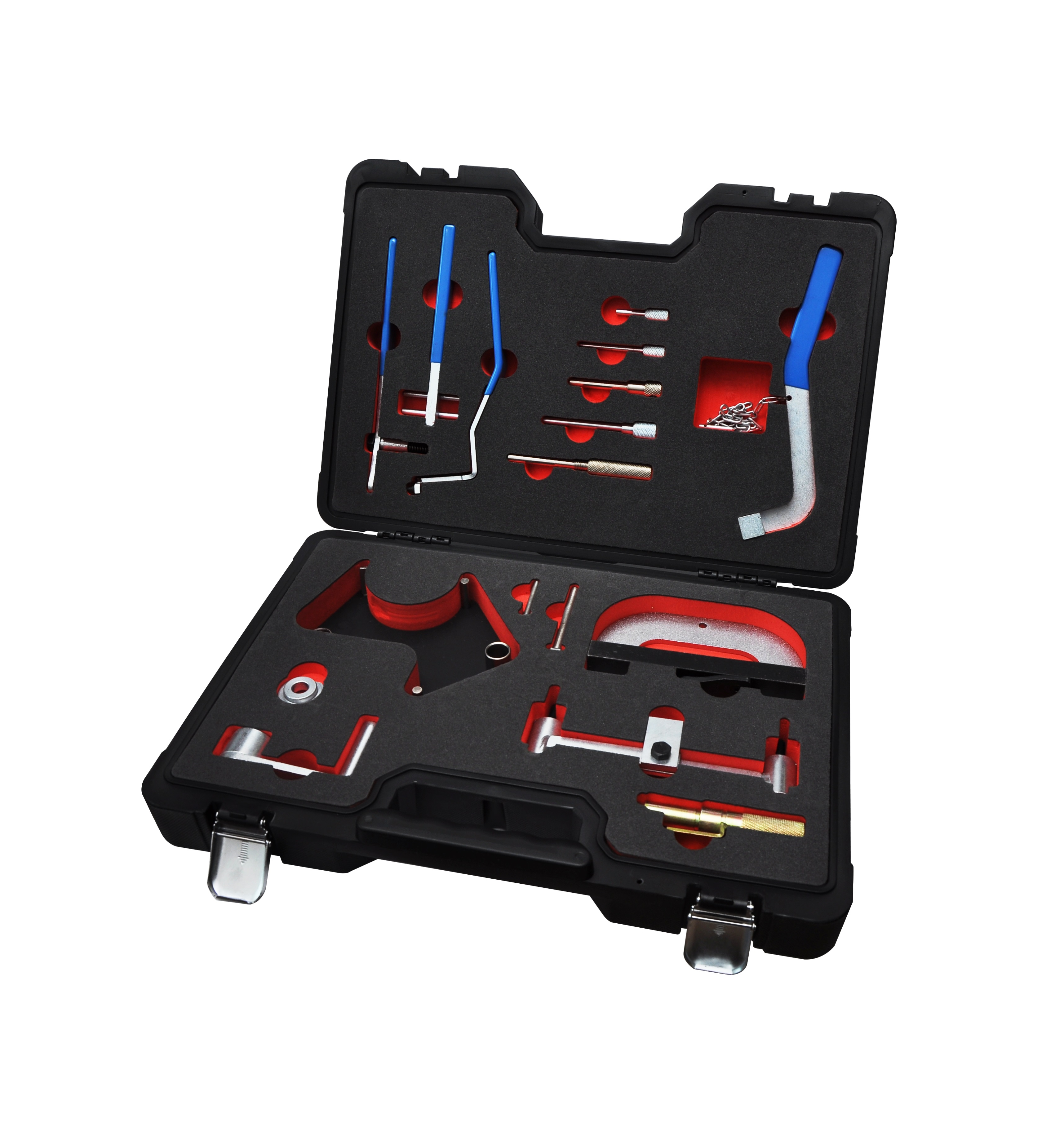

Renault Timing Tool set is for locking of the flywheel, locking of the crankshaft and pump shaft. Locking of the injection pump shaft and removal of the crankshaft pulley. Tightening of the belt and setting gauge for the positioning of camshaft and pump shaft to the crankshaft during timing belt replacement.
Suitable for the following petrol engines:
1.2 (Engine code D7F) e.g. Clio and Twingo
1.2 / 1.4 / 1.6 (Engine code E5-E7F, E7J, K7M) e.g. Clio, Megane, Scenic, Kangoo
1.4 / 1.6 16V (Engine code K4J, K4M ab 1998) e.g. Clio, Clio Sport, Megane, Scenic, Laguna, Espace
1.7 / 1.8 / 2.0 (Engine code F1N – F3N, F3P, F2R – F3R) e.g. Clio, Megane, Scenic
1.8 / 2.0 16V (Engine code F4P, F4R ab 1998) e.g. Clio, Clio Sport, Megane, Scenic, Laguna, Espace
1.8 / 2.0 16V (Engine code F7P, F7R) e.g. Clio Williams, Megane, Spider, R19
2.0 / 2.2 (Engine code J5R – J7R, J5T) e.g. Safrane, Espace, Master, Traffic
2.0 16V / 2.5 20V (Engine code N7Q 704, 710, 711 – N7U 700, 701) e.g. Laguna (96-99) and Safrane (96-01)
And identical Volvo engines (Engine code B16, B18, B20) e.g. Volvo 440, 460, 480
Suitable for the following diesel engines:
1.9/2.5/2.8 Engine code F8M, F8Q, G8T, J8S, F9Q, S8U, S9U, S9W e.g. Clio, Laguna, Megane, Kangoo, Espace, Master, Traffic.
Identical diesel engines e.g. Opel Arena, Movano and Volvo S40, V40 etc.
Suitable for Volvo models:
850 (92-97) – C70 (98-02) – S40 (96-04) – V40 (96-04)
S60 (01-05) – S70 (97-00) – S80 (99-05)
1.6 – 1.8 – 1.9 – 2.0 – 2.3 – 2.4 – 2.5l twin cam
with engine codes
B4164 S/S2
B4184 S/S2/S3/S9/S10
B4194 T/T2
B4204 S/S2/T/T2/T3/T5
B5202 FS
B5204 FT/T2/T3/T4/T5
B5234 T3/T4/T5/T6/T7/T8/T9
B5244 S/S2/SG/SG2/T3/T4/T5/T7
B5252 FS
B5254 T/T2/T4
