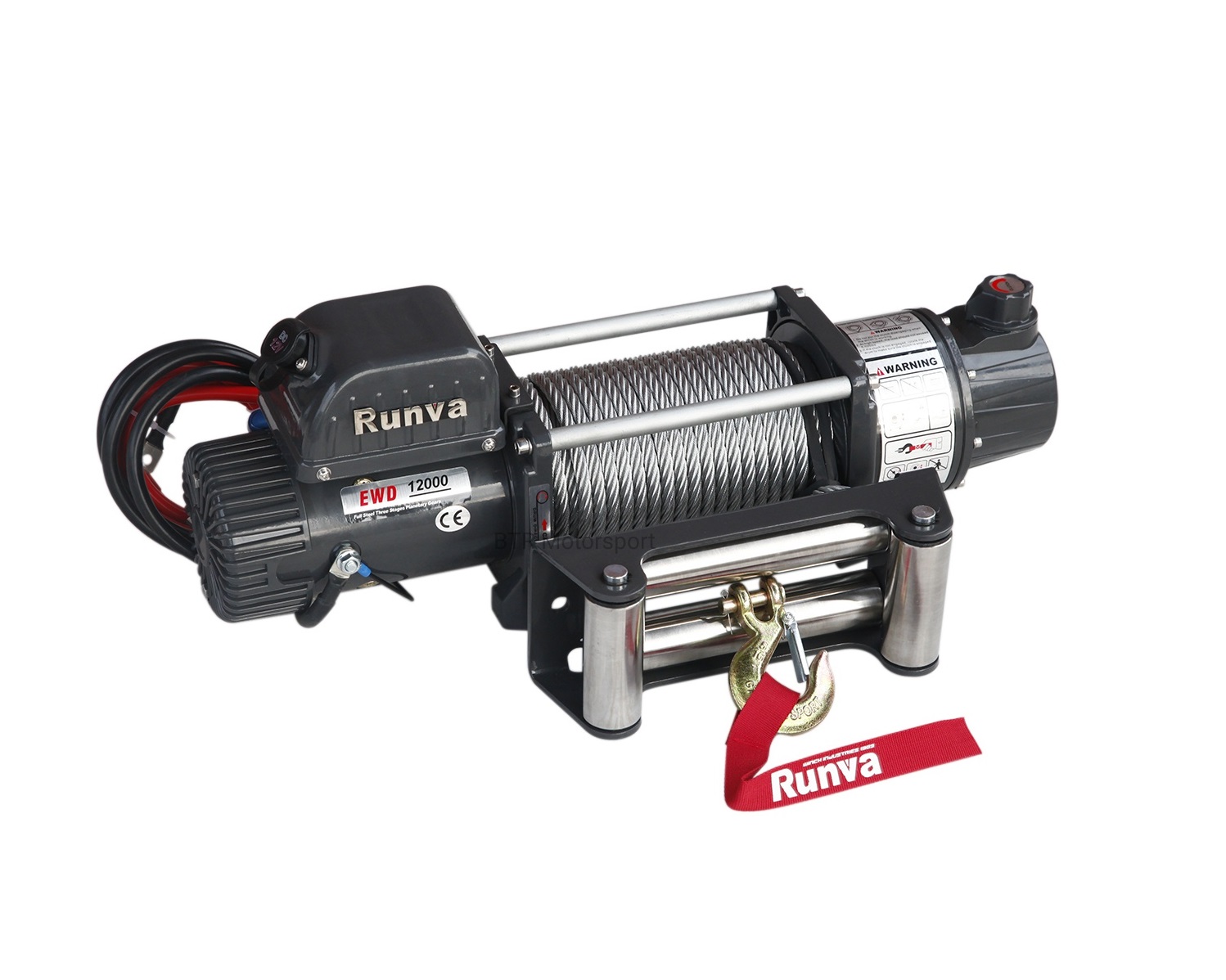

Electric Winch 12000lbs

 689.00 + VAT

SKU: EWD12000U
Runva

Description

Electric Winch 12000lbs

Electric Winch 12000lbs by RUNVA. Patented three stage planetary gear reducer with a two speed and clutch and speed shift structure.

FEATURES:

  • Free spooling clutch
  • Runva patent three stage planetary gear reducer
  • Two speed and clutch and speed shift structure
  • Runva patent three stage planetary gear reducer
  • Clutch and two speed gear actions auto engagement
  • Automatic screw cone braking action
  • Series wound motor
  • Wireless remote control available
  • Remote control through control box and switch

SPECIFICATIONS

Rated line pull 12000 lbs (5443 kgs)
Motor:permanent magnet 12V:Input:5.4kW/7.2hp;Output:2.4kW/3.2hp
Brake Automatic screw cone
Geartrain 3-stage planetary steel gear
Gear reduction ratio 223:1(Low speed);71.6:1(High speed)
Clutch Two-speed shift

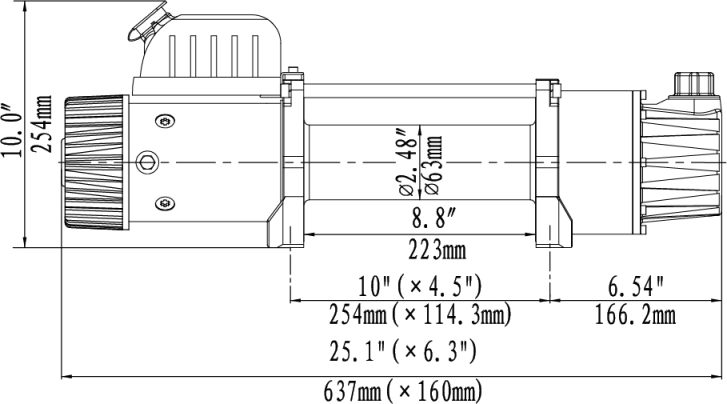

Cable(Dia×L) Ø13/32″×83.7’(Ø10.2mm×25.5m)
Drum size(Dia×L) Ø2.48″×8.8″(Ø63mm×223mm)
Mounting bolt pattern 10″×4.5″(254mm×114.3mm)4-M10
Net weight 90.4lbs/41kgs
