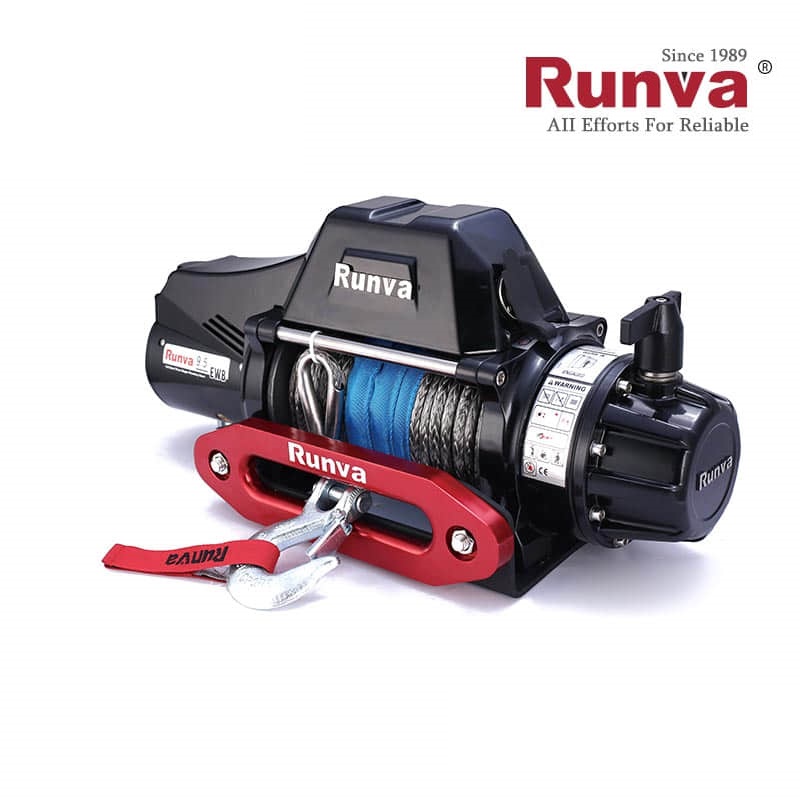

12V Electric Winch Synthetic Rope
12V Electric winch synthetic rope by Runva. This EWB series winch is a reliable performance electric winch with an innovative brake. High –efficient transmission delivers high pull-in speed and low noise. All-stainless out-installed components ensure these winches are more durable.
- Synthetic rope as standard, can save as much as 25lbs. over steel cable.
- All-new patented waterproof design meets IP67 standards.
- Innovative brake inside the gearbox, offers excellent safe, reliable performance.
- Stainless steel rotary clutch for smooth and convenient operation
- Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation.
- Copper connection sealed control pack with elegant appearance
- High-efficient transmission delivers 9m/min pull-in speed and power saving.
- Over-current protection available for safe winching
- Compression-resisted rubber hand remote control
|Rated line pull||9500 lbs. (4309 kg)|
|Motor: series wound||12V: Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp
24V: Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp
|Gear reduction ratio||228:1|
|Cable (Dia.× L)||Ø3/8″×85 ‘(Ø9.2mm×26m)|
|Drum size (Dia.× L)||Ø2.48 “×8.5” (Ø63mm×217mm)|
|Mounting bolt pattern||10 “×4.5” (254mm×114.3 mm) 4-M10|
|Overall dimensions (L×W×H)||574 mm ×160mm ×248mm|
|Net weight (Ibs/kg)||87.1lbs / 39.5kg|
