12V Electric Winch 20000lbs

 1,250.00 + VAT

1 in stock

SKU: EWN20000U
Runva

1 in stock

Description

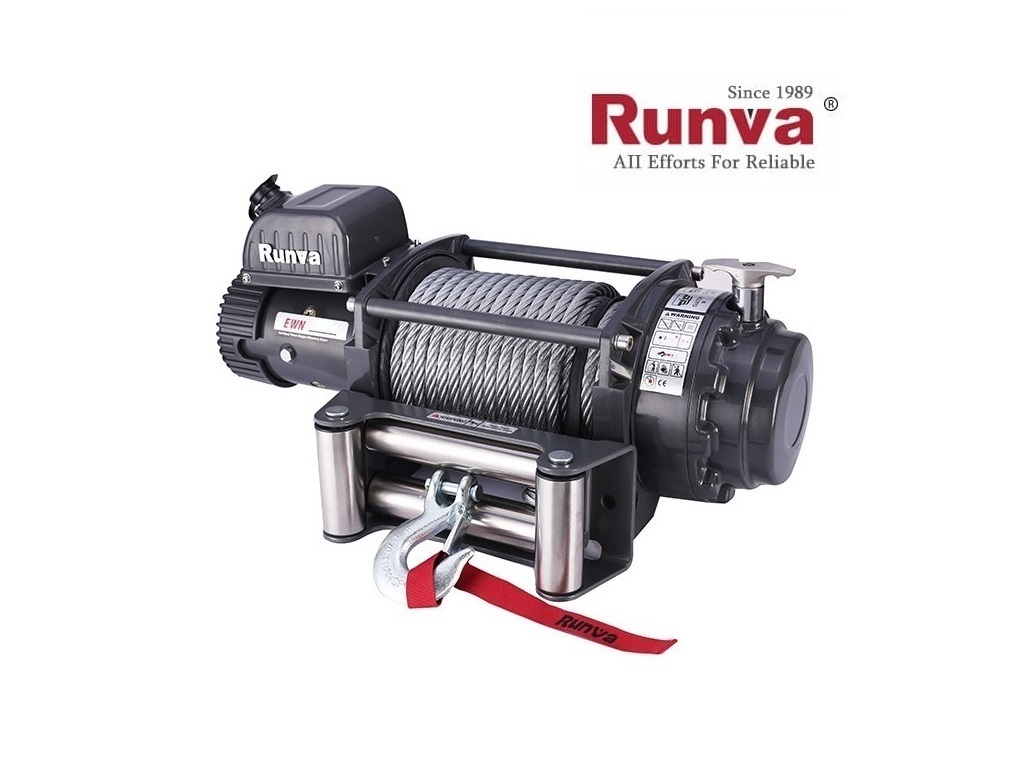

12V Electric winch by Runva. This EWN series is an early-stage heavy duty winch. Perfectly designed efficiency and stable pulling makes this winch the ultimate heavy duty machine.

Features:

  • Free spooling clutch
  • Automatic screw cone braking action
  • Series wound motor.
  • Runva patent three stage planetary gear reducer
  • Remote control through control box and switch
  • Wireless remote control available
Rated line pull 20000 lbs. (9090 kg)
Motor: series wound 12V: Input: 5.4kW / 7.1hp; Output: 2.9 kW /3.9hp
24V: Input: 6.0kW / 7.9hp;Output: 3.1 kW /4.1hp
Gear reduction ratio 430:1
Cable (Dia.× L) Ø15/32 “×87 ‘(Ø12mm×26.5m)
Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)

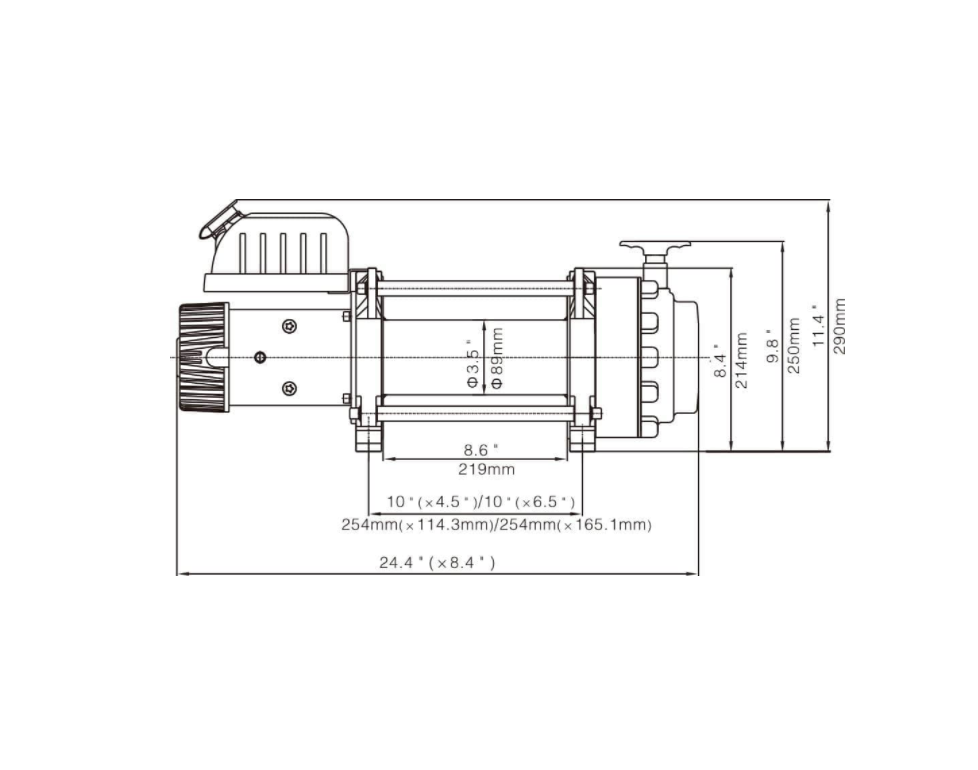

Mounting bolt pattern 10 “×4.5” (254mm×114.3mm) /
10 “×6.5” (254mm×165.1mm)     8-M12
Overall dimensions (L×W×H) 620mm ×214mm ×290mm
Net weight (Ibs/kg) 147.7lbs / 67.0kg
