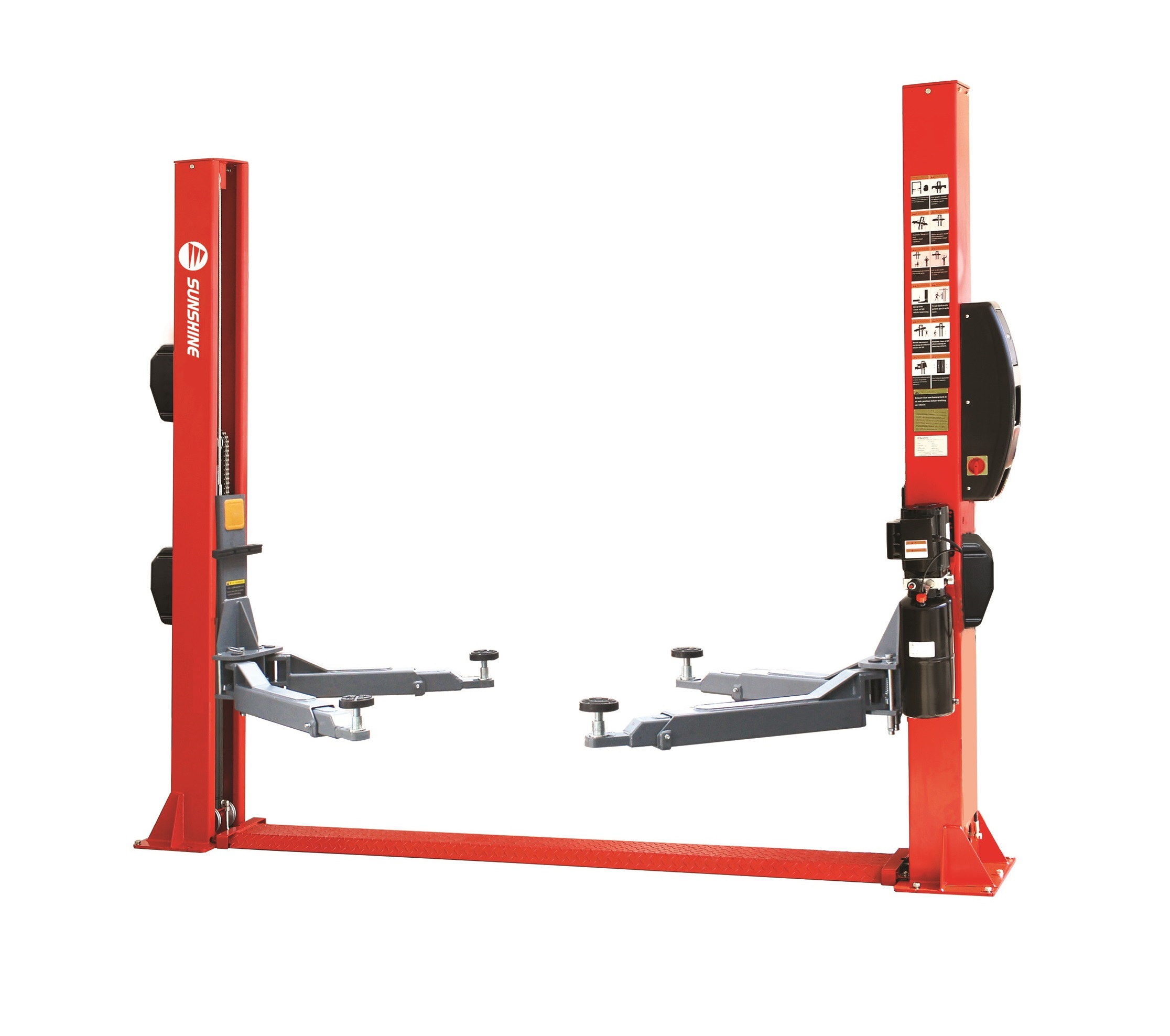

Floorplate two post lift
Floorplate two post lift by Sunshine Lift. One-piece steel bending structure carriage with a new structure stiffening plate, makes it very durable and strong. The arms are made of 2 parts,front arm is short,and rear arm is long, suitable for vehicles with different wheelbase
Control system made by PCB and Siemens electrical parts, stable performance. Ideal choice for quick tire replacement and simple service

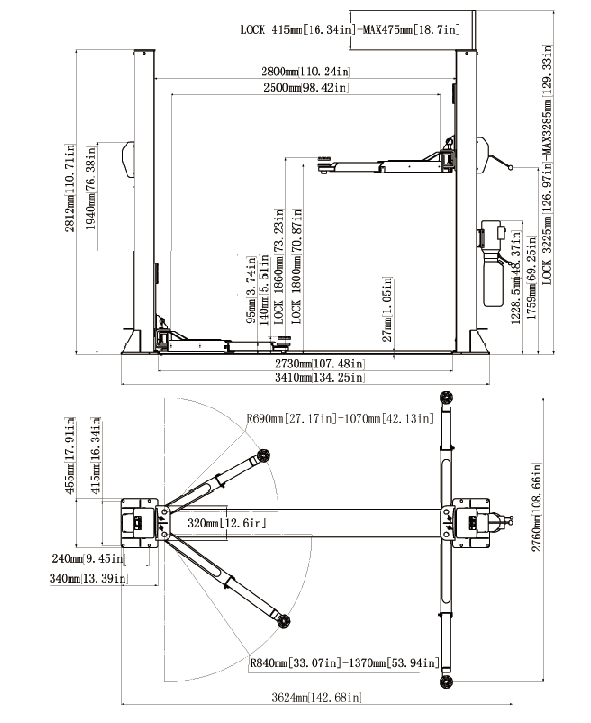

Specifications:
Lifting capacity: 3500Kg (8000lbs)
Post Height: 2800mm
Car max lifting height: 1900mm
Minimum height: 115mm
Clearance between posts: 2800mm
Total width: 3419.6mm
thickness of post material: 5.0mm
Front arm max length: 1070mm
Front arm min length: 695mm
Rear arm max length: 1370mm
Rear arm min length: 840mm
Lifting Time: 50s
Lowering Time: 30s
Power Supply Voltage: 220V/380V ,1ph/3ph
Net Weight: 560Kg Gross Weight :580Kg
Advantages of Sunshine lifts:
1. Column is made of the original steel plate, no deformation during usage
2. Electrostatic powder coating using DUPONT POWER. Which is corrosion-resistant.
3. Slipway and arm protection added.
4. The lowest height of the tray is only from 115mm, which is suitable to all car types.
5. Hydraulic power unit is CE certificated.
6. All the products have 24months waranty after receiving the goods.
*Toolwarehouse offers free delivery for this product
* Please note that installation services are charged extra.
Packing Dimension:
840*290*340MM and 2820*520*820MM
