Quickjack Motorcycle lift

 550.00 + VAT

SKU: 5150007
Quick Jack

Description

QUICKJACK MOTORCYCLE LIFT

Quickjack motorcycle lift compatible with motorcycles up to 1,000 lbs.

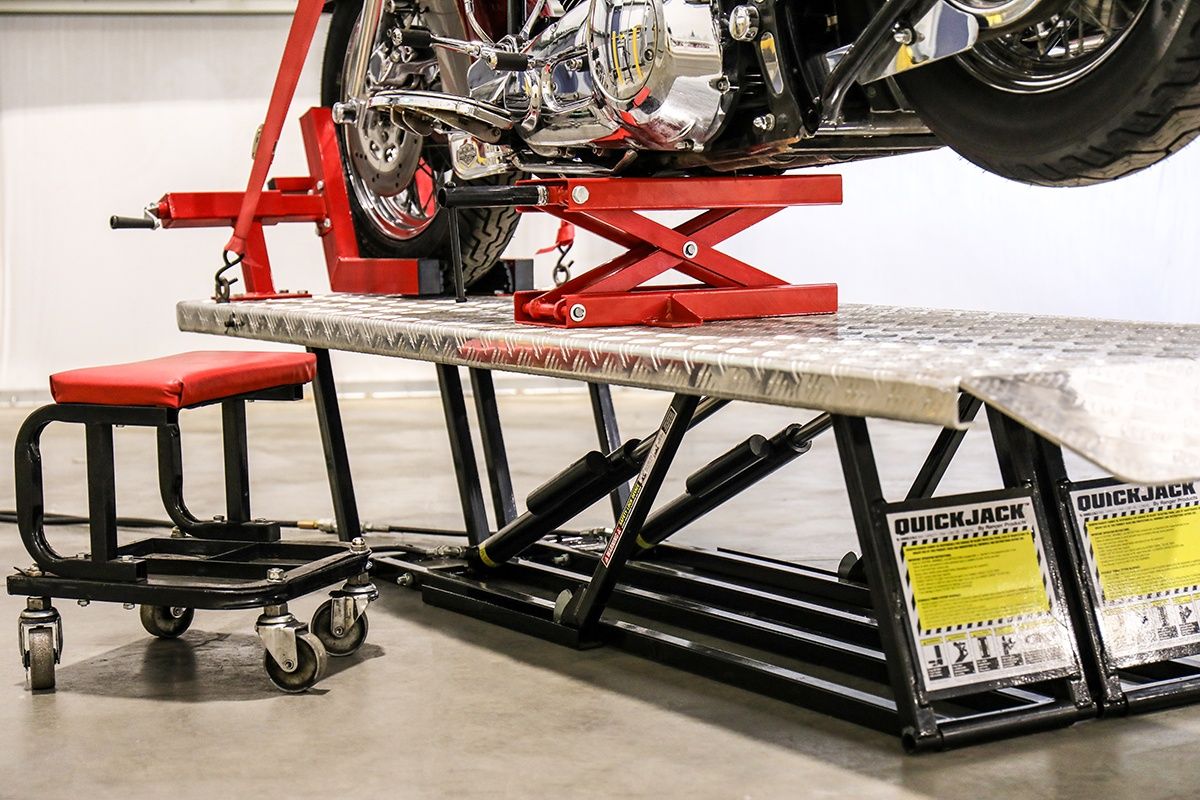

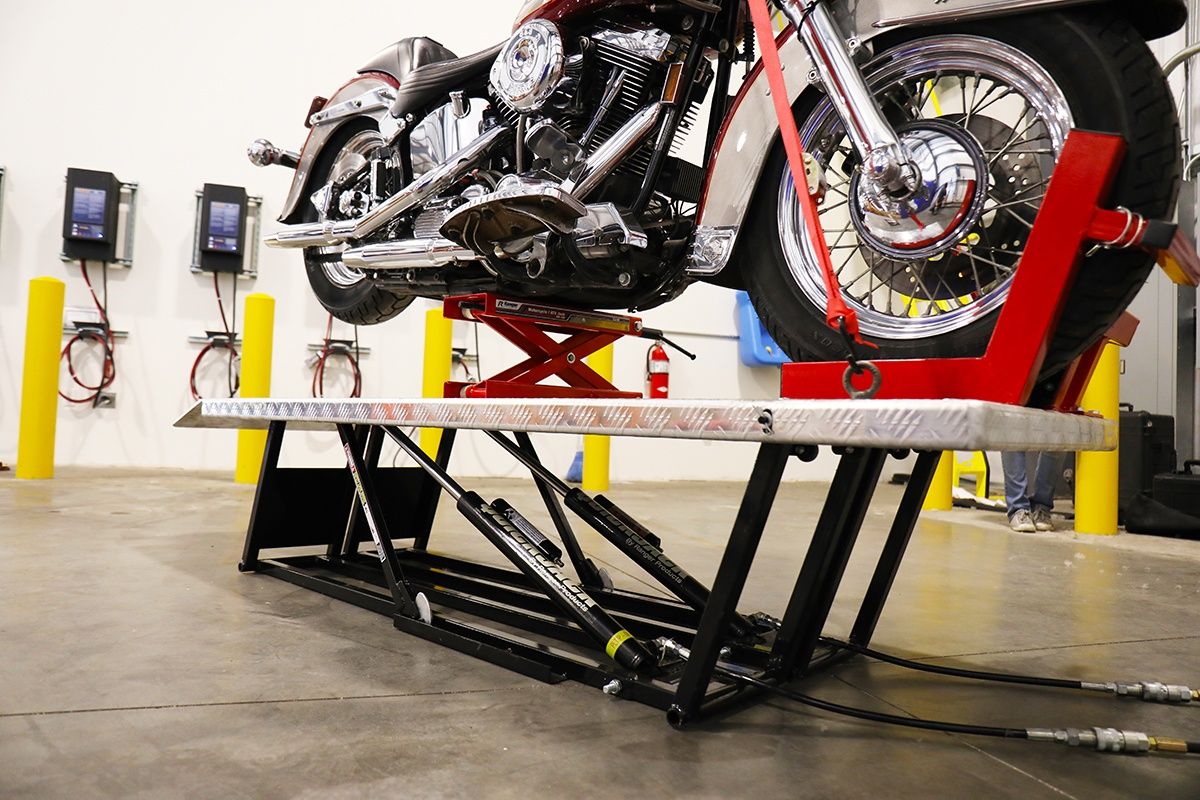

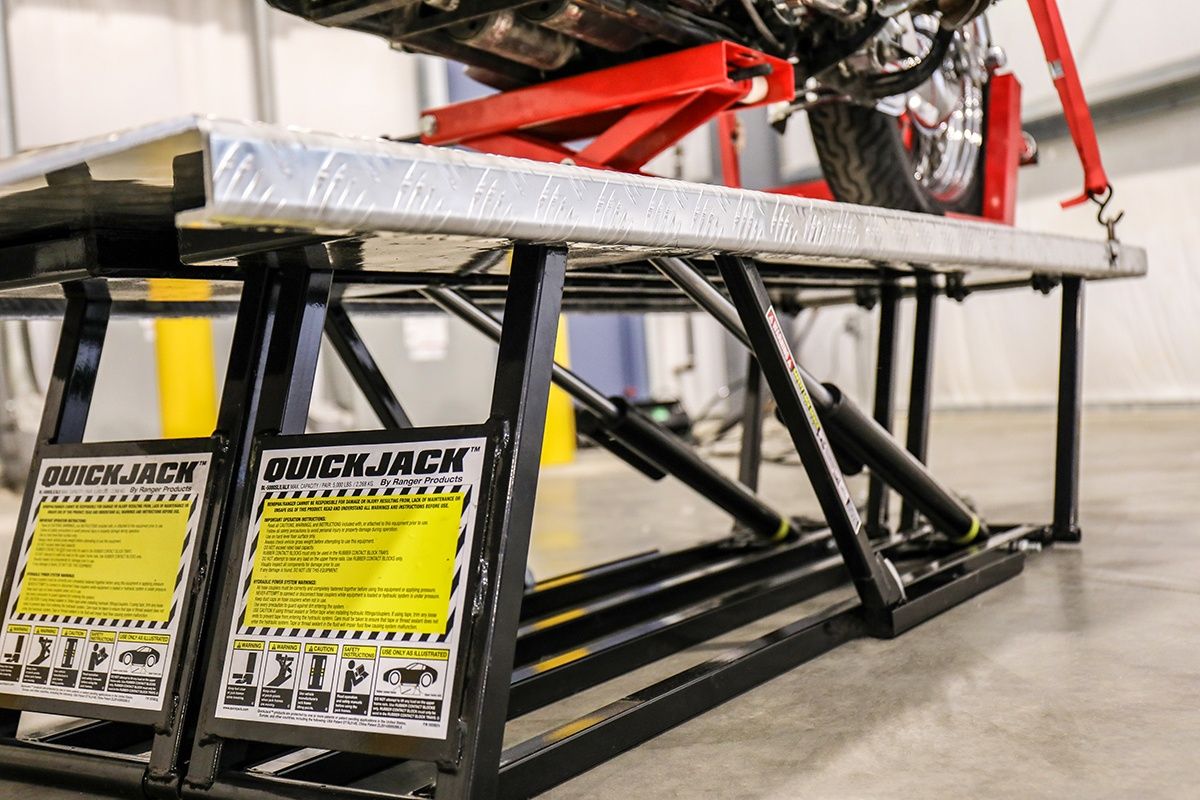

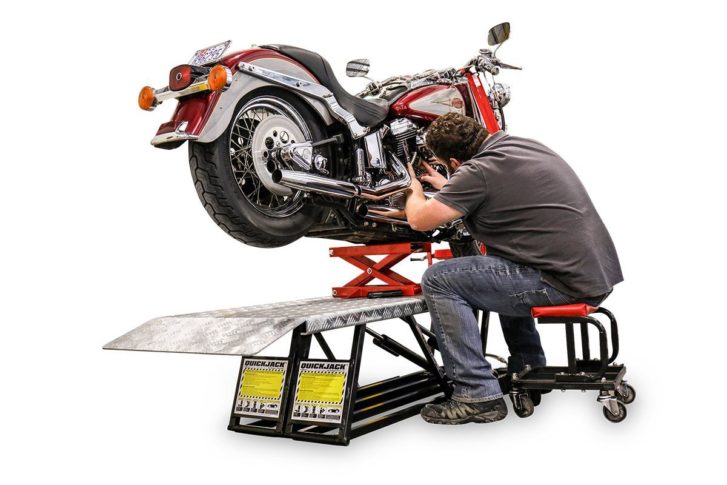

The QuickJack Motorcycle Lift Adapter Kit turns your portable car lift into a portable motorcycle service lift. Simply slide the QuickJack frames together, rest the lightweight aluminum platform on top and secure the assembly with a single pass-through locking pin. The stylish cold-formed diamond tread platform is light, easy to transport and made from rugged TIG-welded 6061-T6 aluminum, providing maximum grip and an attractive finish.

Features:

  • Cold-formed and tig-welded 6061-T6 aluminum diamond tread plate
  • Heavy-duty tie-down rings
  • Rugged steel support axle
  • Red, power-coat finish clamp with durable, treaded rubber padding (motorcycle lift only)
  • Ergonomic crank for easy, non-damaging wheel security

Tech Specs:

  • A – Platform length: 88″ (2,236 mm)
  • B – Platform width: 28.5″ (725 mm)
  • C – Platform height: 2.25” (57 mm)
  • D – Ramp length: 9.25″ (236 mm)

Max. space w/ clamp rubber pads: 8″ (203 mm)
Overall width + crank: 28.6″ (728 mm)
Overall length + clamp extension: 93″ (2,362 mm)

Whats Inside:

  • 1x Aluminum motorcycle platform
  • 1x Motorcycle wheel vise/clamp
  • 1x Steel support rod w/ hardware
  • 2x Tie-down rings

Quickjack lift is required for this kit, sold separately.
Ranger RML-1100 Motorcycle Jack NOT included

Download
The new product catalogue 2023
