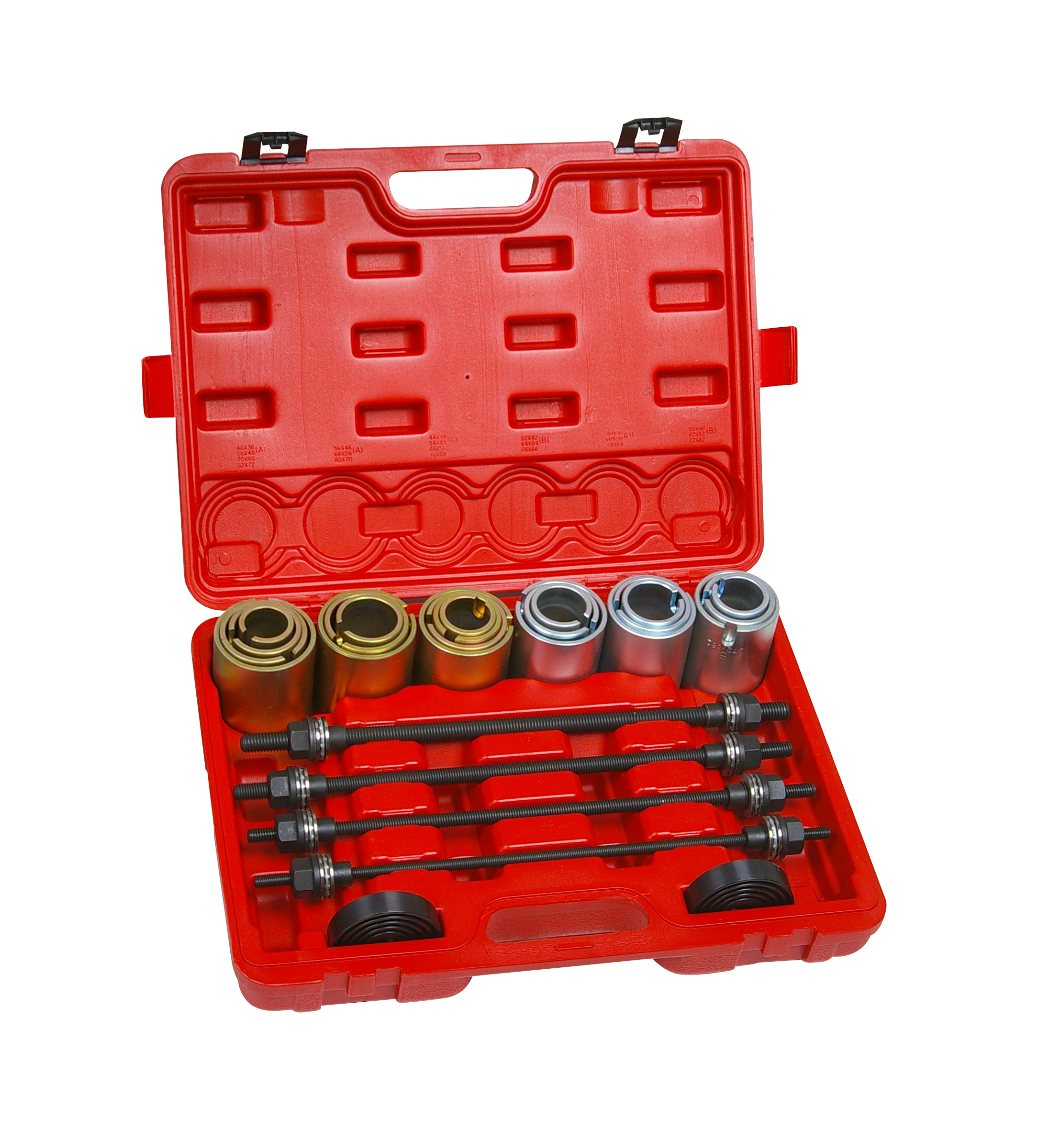

Press and Pull Sleeve Kit

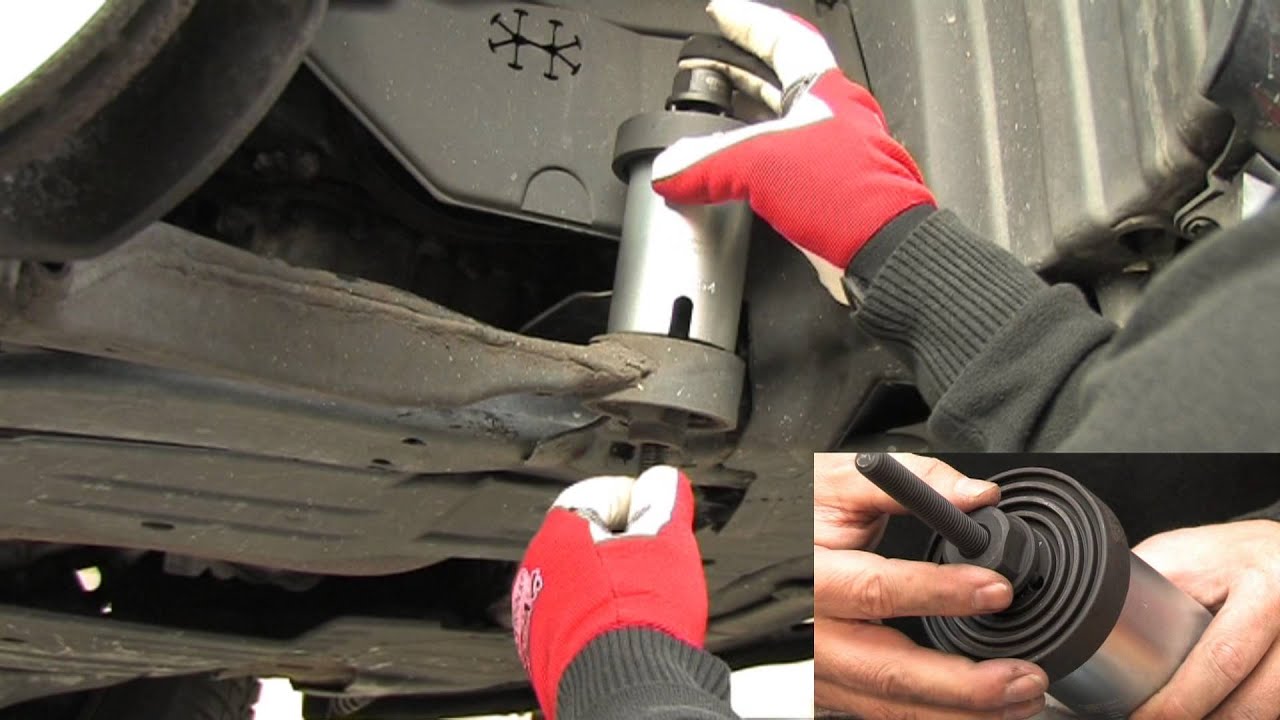

Press and Pull Sleeve Kit by Toolwarehouse. This precision tool kit is for extracting and drawing in bushes, bearings, seals etc.
Contents:
- 20 x Press Sleeves.
- Inside diameter range: 34 – 72mm.
- Outside diameter range: 44 – 82mm.
- 2 x step plates.
- 4 x pulling spindles with thrust bearings
Specifications:
- Sleeve Wall Thickness: 5mm
- Sleeve Height: 94mm
- Sleeve End Caps: 83 x 20mm
- Force Screw Length: 450MM
- Force Screw Threads:
o 10 x 1.5mm, 12 x 1.5mm, 14 x 1.5mm, 16 x 1.5mm
- External Sleeve Diameter: 44mm,
o 46mm, 48mm, 50mm, 52mm, 54mm, 56mm,58mm, 60mm, 62mm, 64mm, 66mm, 68mm, 70mm, 72mm, 74mm, 76mm, 78mm, 80mm, 82mm
